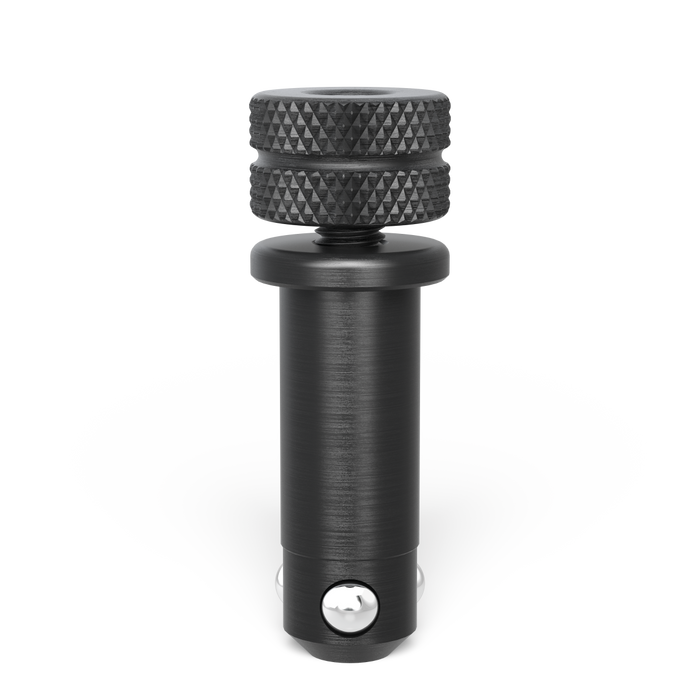

Fast Clamping Bolt without slot triple burnished

SKU
Original price €48,00 - Original price €48,00
Original price
€48,00
€48,00 - €48,00
Current price €48,00
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components. Note: This bolt MUST NOT be used for connecting tables and U-shaped squares! Our recommendation when working with aluminum profiles. Clamping torque dependent on material. When clamping aluminum parts, the bolts must only be tightened hand-tight.

Product number: 160513

Standard shipping

Estimated delivery time: 7-10 days

Features:
- for clamping 3 components
- with screw top
- with hexagon socket (Size 4)

Style: triple

Subgroup: Fast Clamping Bolt

Weight (kg): 0.1

Length (mm): 65

Shearing Force (kN): 55

Tightening Torque Steel (nm): 10.0

Tensile Force Steel (kN): 10

Torque Aluminum (Nm): 2.5
