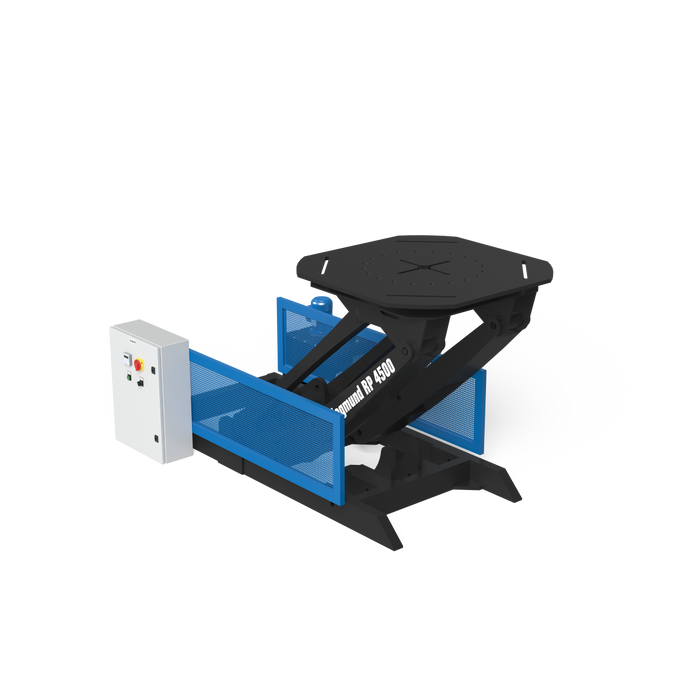

Siegmund Roto-Positioner RP 4500 (without table top) incl. rotatable ground connection

TECHNICAL FEATURES ∙ Hydraulic rotation of the clamping plate ∙ Tilting range up to 95° (optional up to 140°) ∙ Hydraulic height adjustment and tilt function FURTHER DETAILS ∙ Large working area, low height ∙ Optional rotation of the clamping plate with electric drive (still hydraulic height adjustment and tilt function) The unit is ready for immediate use on power up. Octagonal tables and U-squares are not included in delivery. For RP 3000 and RP 4500 we recommend octagonal tables with a width across flats of at least 1200 mm. The stable, rotatable ground connection directly on the device ensures an optimal connection to the tabletop even while rotating. The welding device is connected via a pin on the machine. Twisted ground cables are a thing of the past. Rotatable ground connector included.

Product number: 6R450M16
