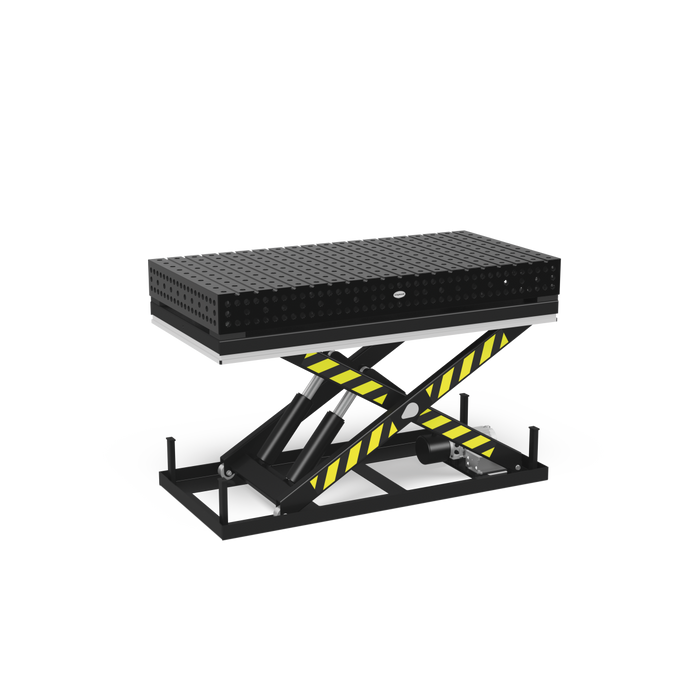

Lifting platform 2010 with Hexagon Slot Table

- with two lifting cylinders - high resilience - easy handling - massive scissors and steel rollers - Contact strip protects against crushing - Above-floor and underfloor installation possible - incl. welding table 2000x1000 mm and insulation plates - Dimensions (L x W): approx. 1990x990 mm - Weight (without a table) approx. 470 kg - Overall height when retracted: 330 mm, Lifting range: 1100 mm - Working height is overall height plus table side panel - Maximum load capacity: Basic frame (without a table) 4000 kg - Lifting time loaded: 45~55 seconds - Force 2,2 kW, Operating voltage 400 V 50 Hz

Product number: HB280020.HNK
