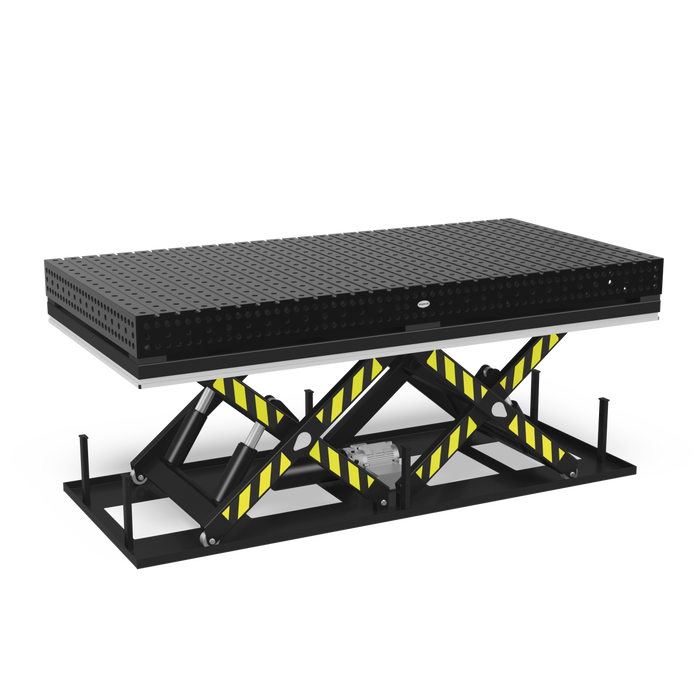

Lifting platform 3015 with Hexagon Slot Table

- with two lifting cylinders - high resilience - easy handling - massive scissors and steel rollers - Contact strip protects against crushing - Above-floor and underfloor installation possible - incl. welding table 3000x1500 mm and insulation plates - Dimensions (L x W): approx. 2990x1490 mm - Weight (without a table) approx. 865 kg - Overall height when retracted: 430 mm, Lifting range: 650 mm - Working height is overall height plus table side panel - Maximum load capacity: Basic frame (without a table) 6000 kg - Lifting time loaded: 34~45 seconds - Force 2,2 kW, Operating voltage 400 V 50 Hz

Product number: HB280040.HNK
